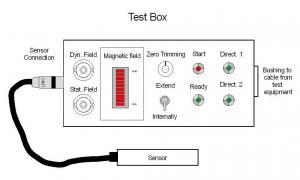

Sensor test box



The box is used to check the function oft he sensor during motor testing.



Display with LED:

  • Start
  • Ready
  • Direction of rotation



In addition, the stator magnetic field of the test object is displayed by bar graph. Furthermore, a disturbing static magnetic field can be compensated by means of a rotary knob.



The result can also be graphically displayed.



Order-N°



TEST-BOX-2
