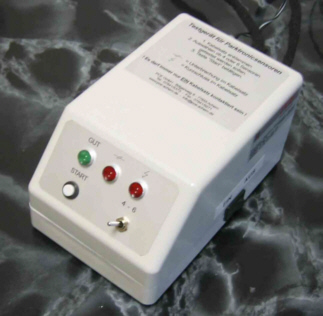

Test device for PDC sensors





Test device for PDC sensors




Use:

Functional test of internal and external levels of the different series.



Description:

It is only the electric connection to the sensors verifiable.

The sensors are supplied on the test box and the available sets of cables with voltage.

Means Mirko controller in the test box is the signal line to

Low and high level tested.

All sensors are good, a green LED lights up. If one or more bad, then a red LED lights up. The audit says nothing

using the function of the sensor of.



The supply voltage is 12V



More test functions are possible on request
