Direction and speed sensors

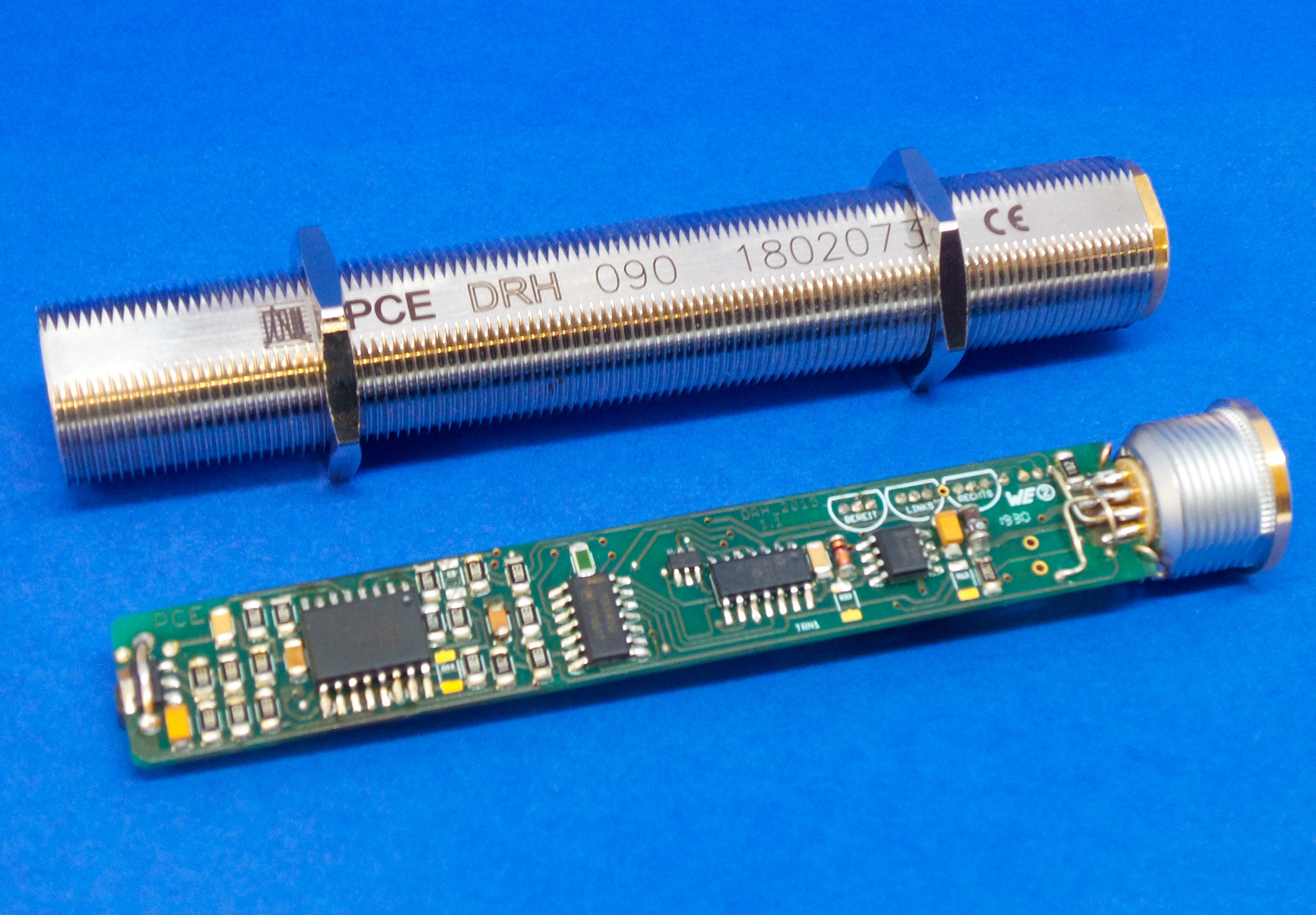

Rotational direction sensor DRH



Description



Suitable für standard applications e.g. fan motors, actuator motors.



Distance: 0-30mm



Dimensions:

Thread: M18x1

Length: 110mm



Order N°



DRH 090

DRH 180

DRH 030

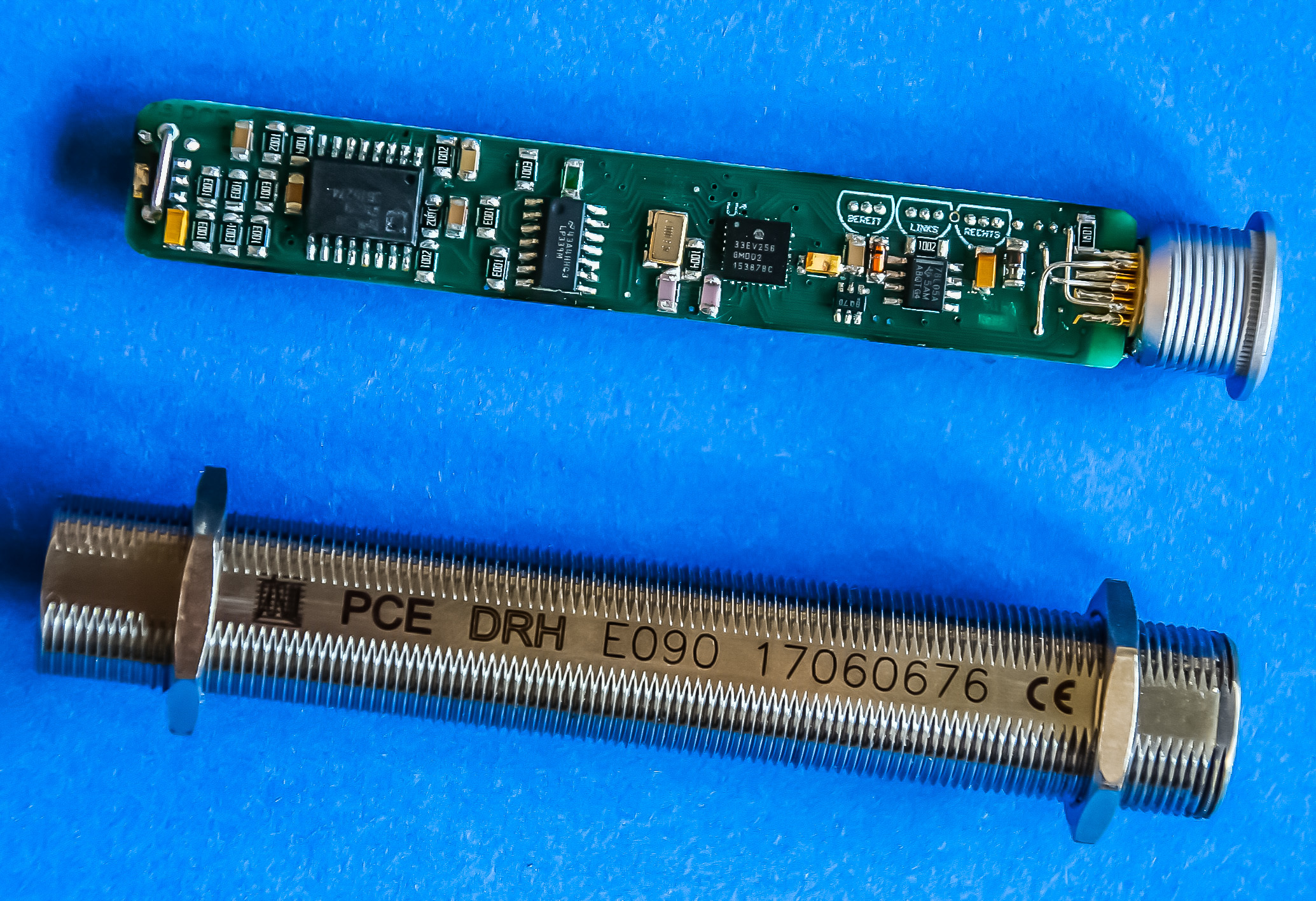

Rotational direction sensor DRH E



Description



High sensitivity

Suitable for distance up to 100mm



Dimensions:

Thread: M18x1

Length: 110mm



Order N°



DRH E090

DRH E180

DRH E030

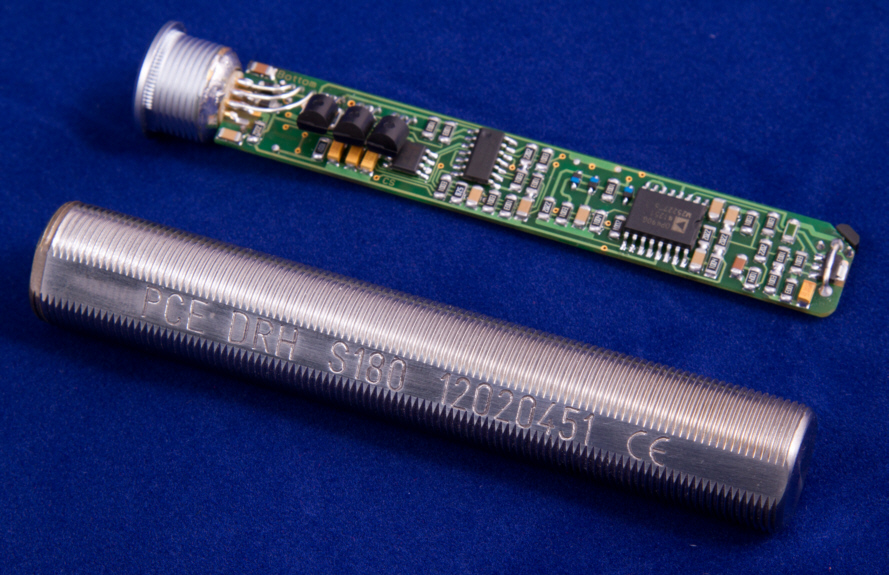

Rotational direction sensor DRH S



Description



Application with engines with difficult magnetic field, e.g. ABS-engine

distance: 0-30mm





Dimensions:

Thread: M18x1

Length: 110mm



Order N°



DRH S090

DRH S180

DRH S030

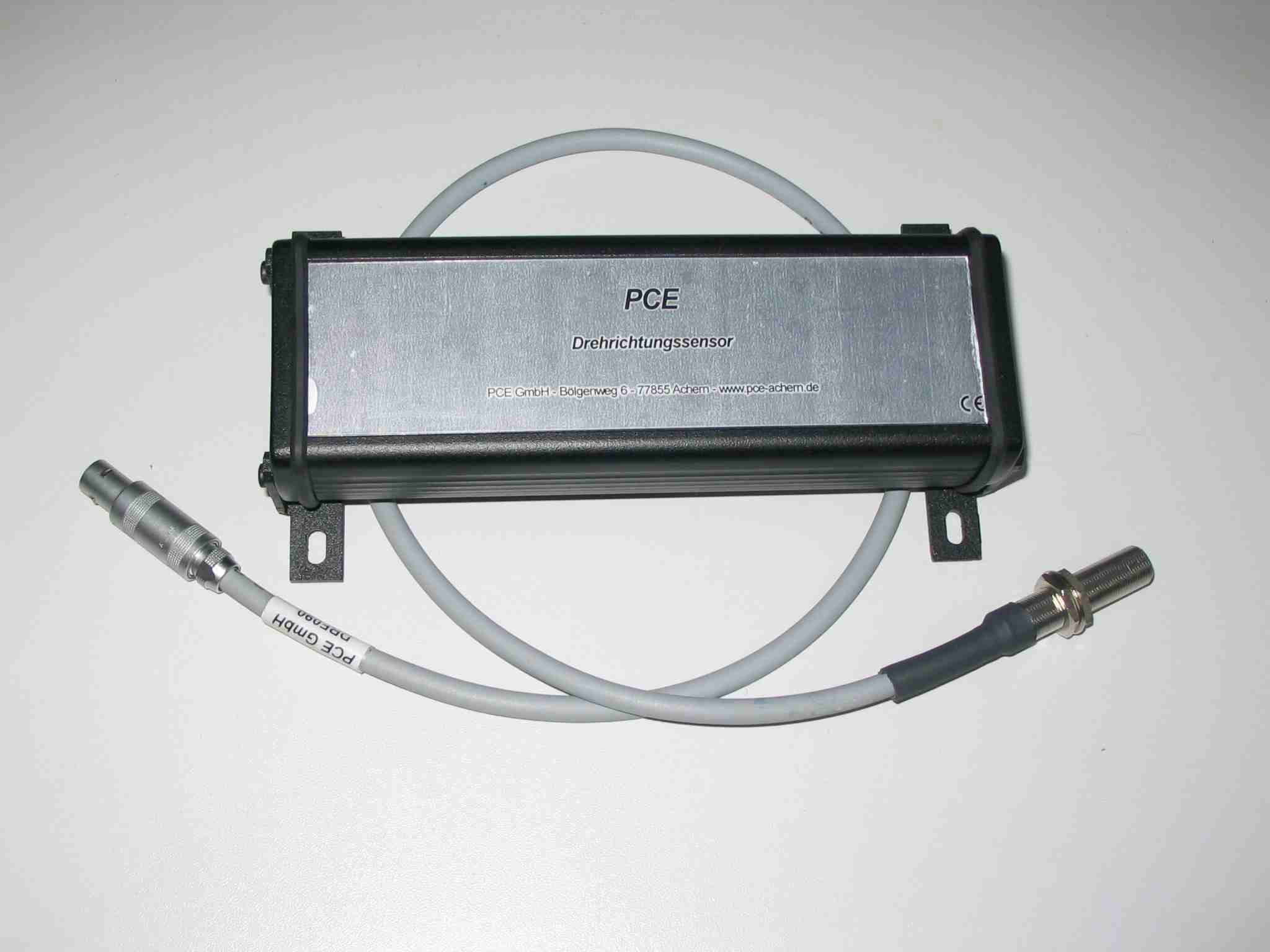

Rotational direction sensor DRH F



Description



For operation with difficult space condition



Sensor diameter: 10mm

Sensor length: 50 mm



Electronics in additional housing.



Order N°



DRH F 090

DRH F 180
